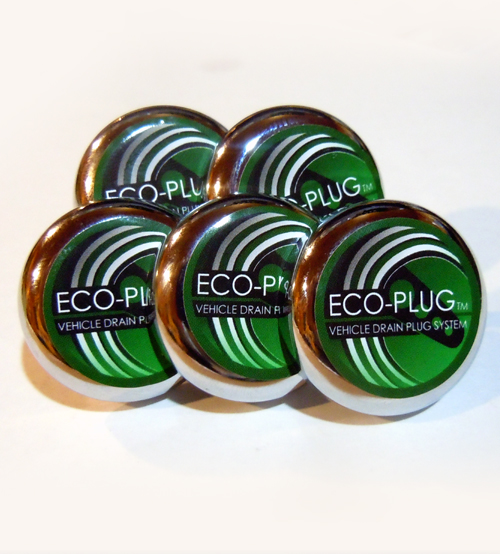

Universal Eco-Plug For Aluminum Oil Pan

ALUMINUM MOTOR OIL PAN CONVERSION TO ECO-PLUG, REQUIRES 1 OF 4 SPECIFIED CONVERSION STEEL T-BOLTS. THE SPECIFIED CONVERSION STEEL T-BOLT PROVIDES A MAGNETIC BASE FOR ECO-PLUG. THE CONVERSION STEEL T-BOLT IS A ONE TIME PERMANENT INSTALLATION WITH LOCTITE EPOXY.

AVAILABLE ECO-PLUG CONVERSION STEEL T-BOLT SIZES:

ITEM # (12MM X 1.50 CONVERSION STEEL T-BOLT)

ITEM # (14MM X 1.50 CONVERSION STEEL T-BOLT)

ITEM # (12MM X 1.75 CONVERSION STEEL T-BOLT)

ITEM # (18MM X 1.50 CONVERSION STEEL T-BOLT)

------------------------------------------------------------------------

ECO-PLUG IS BUILT & ENGINEERED TO LAST A LIFE TIME

PREVENTS OIL PAN THREAD DAMAGE

RESOLVES OIL PAN REPLACEMENT

MAGNETICALLY LOCKS TO STEEL T-BOLT WITH 60LBS OF MAGNETIC PULL FORCE

INSTALLS / UNINSTALLS IN SECONDS

------------------------------------------------------------------------

INSTRUCTIONS FOR ALUMINUM MOTOR OIL PAN - CONVERSION TO ECO-PLUG:

1. REMOVE / DISCARD TRADITIONAL THREADED OIL DRAIN PLUG

2. THOROUGHLY DRAIN MOTOR OIL / WIPE CLEAN MOTOR OIL PAN THREADS

3. DETERMINE CONVERSION STEEL T-BOLT

4. APPLY LOCTITE EPOXY TO STEEL T-BOLT THREADS

5. SLOWLY THREAD STEEL T-BOLT WITH LOCTITE EPOXY INTO OIL PAN THREADS

(IMPORTANT DO NOT CROSSTHREAD)

6. SNUG CONVERSION STEEL T-BOLT TO PAN WITH 1.25" WRENCH OR SOCKET.

7. CURE TIME 1 HOUR

8. INSTALL ECO-PLUG STEEL SHAFT WITH DuPont GASKET MAGNETICALLY INTO CONVERSION STEEL T-BOLT TO FINISH

------------------------------------------------------------------------

ECO-PLUG REMOVAL FROM CONVERSION STEEL T-BOLT:

(OPTION 1)

APPLY THE PROFESSIONAL MAGNETIC REMOVAL TOOL TO ECO-PLUG (PULL TO REMOVE)

(OPTION 2)

ADJUST AND CLAMP VICE GRIP TO ECO-PLUG (PULL TO REMOVE)
